对接企业微信推送消息
目录
对接企业微信推送消息
前期准备
先用企业微信登录
创建运用
一：如何创建企业内部应用 - 教程 - 企业微信开发者中心 (qq.com)
获取 corpid，agentId，corpsecret
- corpsecret：运用密钥
- agentId：运用id
- corpid：企业id,在我的企业》企业信息》企业id（在页面底部，需要认证之后才有）

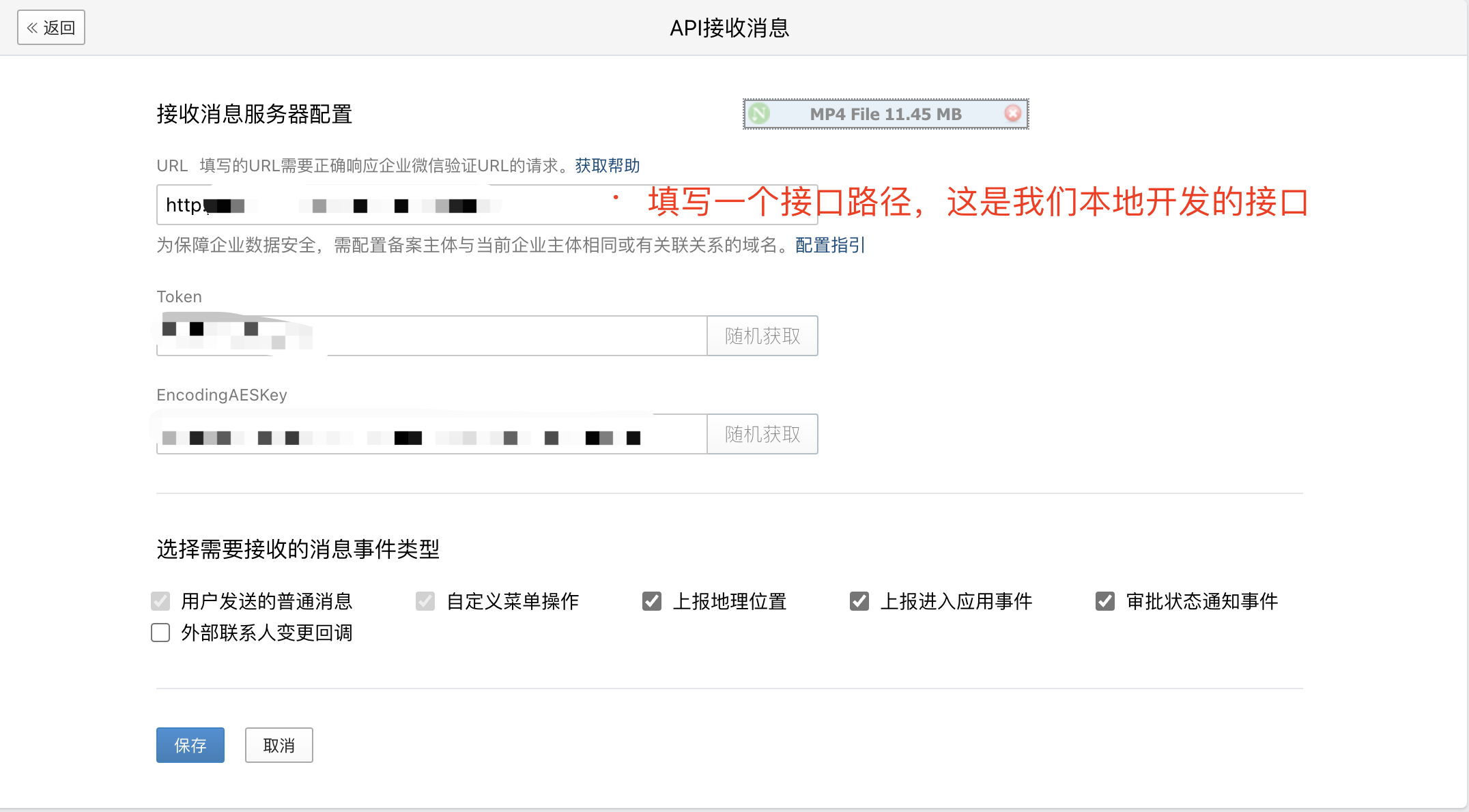

设置回调地址

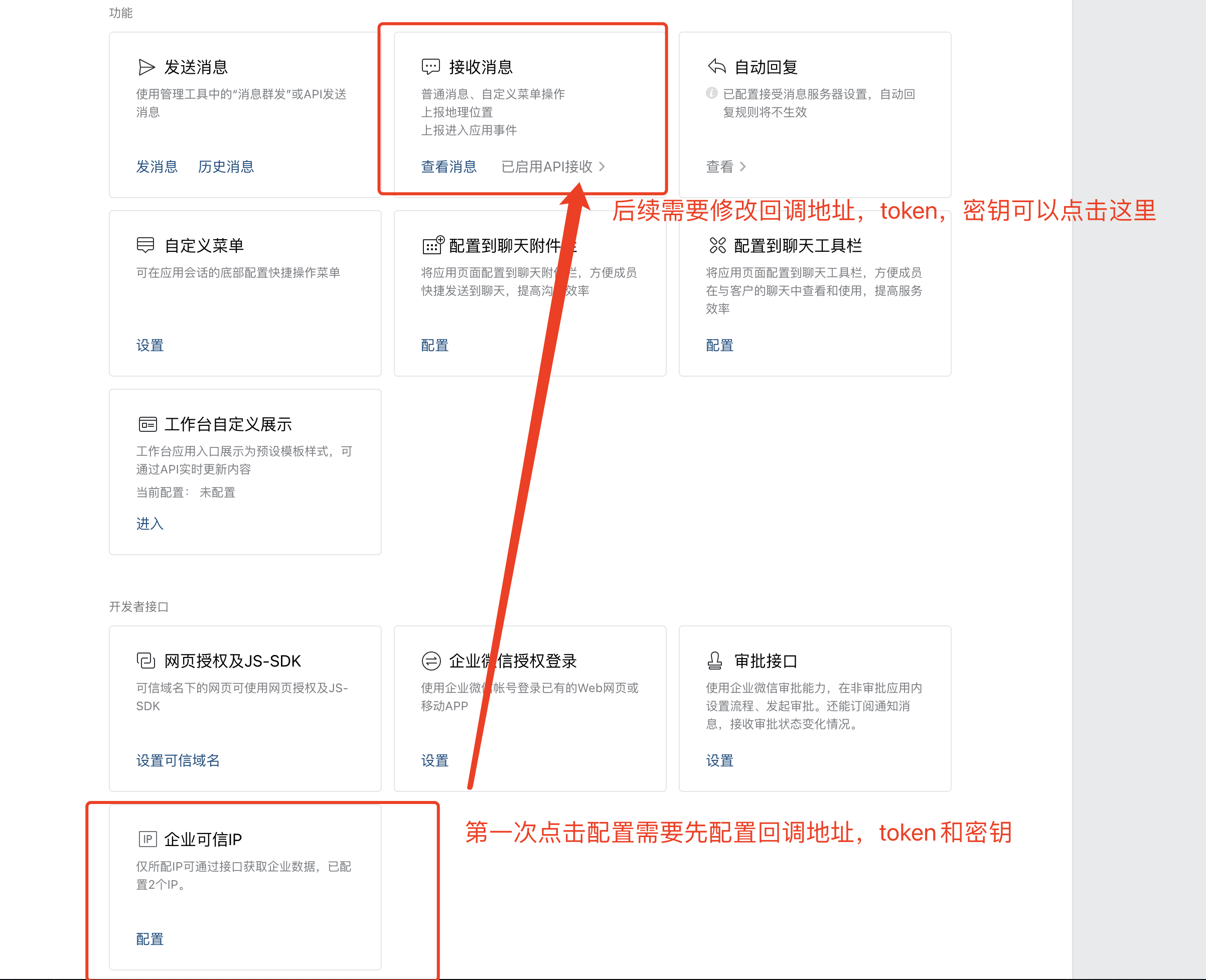

在我的运用里面找到新创建的运用
程序开发
配置案例可以参考weixin-java-cp-demo工程
引入依赖：
<!--企业微信依赖包-->
<dependency>
<groupId>com.github.binarywang</groupId>
<artifactId>weixin-java-cp</artifactId>
<version>4.5.0</version>
</dependency>添加配置”
#单实例配置
wechat:
cp:
corpId: "xxx"
appConfigs:
- agentId: xxx
secret: "xxx"
token: "xxx"
aesKey: "xxx"创建配置属性类
package com.example.spring.boot.test.config;
import lombok.Data;
import lombok.Getter;
import lombok.Setter;
import org.springframework.boot.context.properties.ConfigurationProperties;
import java.util.List;
/**
* @author <a href="https://github.com/binarywang">Binary Wang</a>
*/
@Data
@ConfigurationProperties(prefix = "wechat.cp")
public class WxCpProperties {
/**
* 设置企业微信的corpId
*/
private String corpId;
private List<AppConfig> appConfigs;
@Getter
@Setter
public static class AppConfig {
/**
* 设置企业微信应用的AgentId
*/
private Integer agentId;
/**
* 设置企业微信应用的Secret
*/
private String secret;
/**
* 设置企业微信应用的token
*/
private String token;
/**
* 设置企业微信应用的EncodingAESKey
*/
private String aesKey;
}
}创建配置类configuration
package com.example.spring.boot.test.config;
import com.example.spring.boot.test.config.handler.*;
import com.google.common.collect.Maps;
import lombok.val;
import me.chanjar.weixin.common.api.WxConsts;
import me.chanjar.weixin.cp.api.WxCpService;
import me.chanjar.weixin.cp.api.impl.WxCpServiceImpl;
import me.chanjar.weixin.cp.config.impl.WxCpDefaultConfigImpl;
import me.chanjar.weixin.cp.constant.WxCpConsts;
import me.chanjar.weixin.cp.message.WxCpMessageRouter;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.context.properties.EnableConfigurationProperties;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import javax.annotation.PostConstruct;
import java.util.Map;
import java.util.stream.Collectors;
/**
* 单实例配置
*
* @author <a href="https://github.com/binarywang">Binary Wang</a>
*/
@Configuration
@EnableConfigurationProperties(WxCpProperties.class)
public class WxCpConfiguration {
private LogHandler logHandler;
private NullHandler nullHandler;
private LocationHandler locationHandler;
private MenuHandler menuHandler;
private MsgHandler msgHandler;
private UnsubscribeHandler unsubscribeHandler;
private SubscribeHandler subscribeHandler;
private WxCpProperties properties;
private static Map<Integer, WxCpMessageRouter> routers = Maps.newHashMap();
private static Map<Integer, WxCpService> cpServices = Maps.newHashMap();
@Autowired
public WxCpConfiguration(LogHandler logHandler, NullHandler nullHandler, LocationHandler locationHandler,
MenuHandler menuHandler, MsgHandler msgHandler, UnsubscribeHandler unsubscribeHandler,
SubscribeHandler subscribeHandler, WxCpProperties properties) {
this.logHandler = logHandler;
this.nullHandler = nullHandler;
this.locationHandler = locationHandler;
this.menuHandler = menuHandler;
this.msgHandler = msgHandler;
this.unsubscribeHandler = unsubscribeHandler;
this.subscribeHandler = subscribeHandler;
this.properties = properties;
}
public static Map<Integer, WxCpMessageRouter> getRouters() {
return routers;
}
public static WxCpService getCpService(Integer agentId) {
return cpServices.get(agentId);
}
@PostConstruct
public void initServices() {
cpServices = this.properties.getAppConfigs().stream().map(a -> {
val configStorage = new WxCpDefaultConfigImpl();
configStorage.setCorpId(this.properties.getCorpId());
configStorage.setAgentId(a.getAgentId());
configStorage.setCorpSecret(a.getSecret());
configStorage.setToken(a.getToken());
configStorage.setAesKey(a.getAesKey());
val service = new WxCpServiceImpl();
service.setWxCpConfigStorage(configStorage);
routers.put(a.getAgentId(), this.newRouter(service));
return service;
}).collect(Collectors.toMap(service -> service.getWxCpConfigStorage().getAgentId(), a -> a));
}
private WxCpMessageRouter newRouter(WxCpService wxCpService) {
final val newRouter = new WxCpMessageRouter(wxCpService);
// 记录所有事件的日志 （异步执行）
newRouter.rule().handler(this.logHandler).next();
// 自定义菜单事件
newRouter.rule().async(false).msgType(WxConsts.XmlMsgType.EVENT)
.event(WxConsts.MenuButtonType.CLICK).handler(this.menuHandler).end();
// 点击菜单链接事件（这里使用了一个空的处理器，可以根据自己需要进行扩展）
newRouter.rule().async(false).msgType(WxConsts.XmlMsgType.EVENT)
.event(WxConsts.MenuButtonType.VIEW).handler(this.nullHandler).end();
// 关注事件
newRouter.rule().async(false).msgType(WxConsts.XmlMsgType.EVENT)
.event(WxConsts.EventType.SUBSCRIBE).handler(this.subscribeHandler)
.end();
// 取消关注事件
newRouter.rule().async(false).msgType(WxConsts.XmlMsgType.EVENT)
.event(WxConsts.EventType.UNSUBSCRIBE)
.handler(this.unsubscribeHandler).end();
// 上报地理位置事件
newRouter.rule().async(false).msgType(WxConsts.XmlMsgType.EVENT)
.event(WxConsts.EventType.LOCATION).handler(this.locationHandler)
.end();
// 接收地理位置消息
newRouter.rule().async(false).msgType(WxConsts.XmlMsgType.LOCATION)
.handler(this.locationHandler).end();
// 扫码事件（这里使用了一个空的处理器，可以根据自己需要进行扩展）
newRouter.rule().async(false).msgType(WxConsts.XmlMsgType.EVENT)
.event(WxConsts.EventType.SCAN).handler(this.nullHandler).end();
newRouter.rule().async(false).msgType(WxConsts.XmlMsgType.EVENT)
.event(WxCpConsts.EventType.CHANGE_CONTACT).handler(new ContactChangeHandler()).end();
newRouter.rule().async(false).msgType(WxConsts.XmlMsgType.EVENT)
.event(WxCpConsts.EventType.ENTER_AGENT).handler(new EnterAgentHandler()).end();
// 默认
newRouter.rule().async(false).handler(this.msgHandler).end();
return newRouter;
}
}开发回调地址
@GetMapping(value = "/wx/cp/portal/{agentId}", produces = "text/plain;charset=utf-8")
public String authGet(@PathVariable Integer agentId,
@RequestParam(name = "msg_signature", required = false) String signature,
@RequestParam(name = "timestamp", required = false) String timestamp,
@RequestParam(name = "nonce", required = false) String nonce,
@RequestParam(name = "echostr", required = false) String echostr) {
this.logger.info("\n接收到来自微信服务器的认证消息：signature = [{}], timestamp = [{}], nonce = [{}], echostr = [{}]",
signature, timestamp, nonce, echostr);
if (StringUtils.isAnyBlank(signature, timestamp, nonce, echostr)) {
throw new IllegalArgumentException("请求参数非法，请核实!");
}
final WxCpService wxCpService = WxCpConfiguration.getCpService(agentId);
if (wxCpService == null) {
throw new IllegalArgumentException(String.format("未找到对应agentId=[%d]的配置，请核实！", agentId));
}
if (wxCpService.checkSignature(signature, timestamp, nonce, echostr)) {
return new WxCpCryptUtil(wxCpService.getWxCpConfigStorage()).decrypt(echostr);
}
return "非法请求";
}==这里我们是本地开发的需要使用内网穿透工具将本机ip+端口 映射到公网，这里可以自行去研究（花生壳工具），如果实在不会找一台公网服务器将运用部署上去也行。==
将回调地址配置到微信控制台，然后将本机的公网ip添加到可信任ip列表中
编写测试代码：
@Test
public void test5() throws WxErrorException {
// agentId
WxCpService cpService = WxCpConfiguration.getCpService(1234);
// 根据手机号获取用户id
String userId = cpService.getUserService().getUserId("15*******89");
NewArticle newArticle = new NewArticle();
newArticle.setDescription("xxx于2023-09-06 13:05:49 未戴安全帽，请区域安全员及时提醒！");
newArticle.setTitle("安全帽事件推送");
newArticle.setPicUrl("https://ts1.cn.mm.bing.net/th/id/R-C.b49dbddffaa692d75988e0c5882dacca?rik=r6IIYs2muimY7A&riu=http%3a%2f%2fwww.quazero.com%2fuploads%2fallimg%2f140529%2f1-140529145A4.jpg&ehk=Co9XURYRCjJXUTzFG0Mw6lD7olzDKceEgv3slEC8kvQ%3d&risl=&pid=ImgRaw&r=0");
newArticle.setUrl("https://www.baidu.com");
WxCpMessage build = WxCpMessage.NEWS()
.addArticle(newArticle)
.build();
build.setToUser(userId);
WxCpMessageSendResult send = cpService.getMessageService().send(build);
System.out.println(JSON.toJSONString(send));

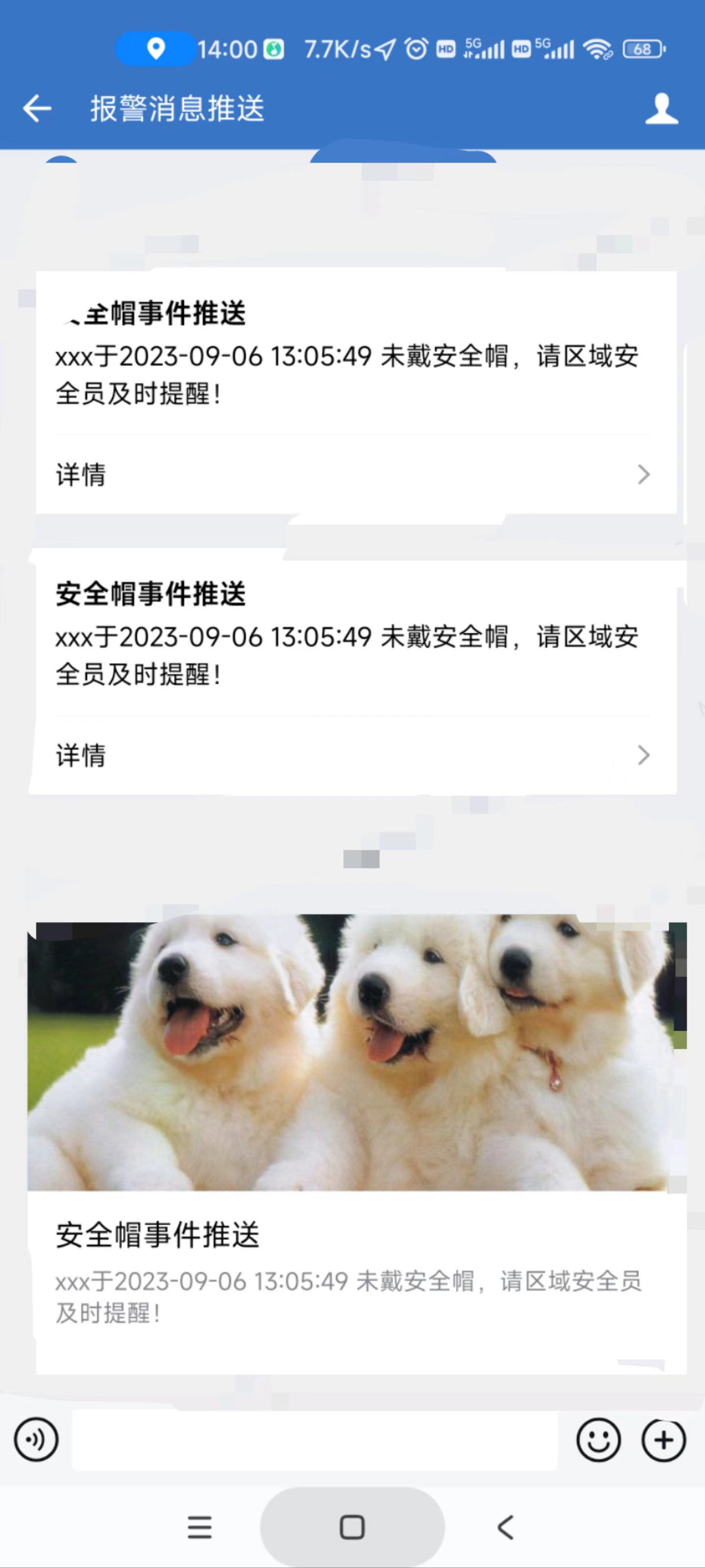

}测试结果：
{"errcode":0,"errmsg":"ok","msgid":"Dv0oBVNA9p2BIWPODPqgkoeFIMlk3Ooo6LwJPkFQlyPadNhyC935E6z_yycxgRtjKuLq"}
