docker-compose部署rocketmq5.x

编写配置文件

version: '3.8'
services:
  rmqnamesrv:
    image: apache/rocketmq:5.1.1
    container_name: rmqnamesrv
    ports:
      - 9876:9876
    restart: always
    privileged: true
    volumes:
      - ./nameserver/logs:/home/rocketmq/logs
      - ./nameserver/bin/runserver.sh:/home/rocketmq/rocketmq-5.1.1/bin/runserver.sh
    environment:
      - MAX_HEAP_SIZE=256M
      - HEAP_NEWSIZE=128M
    command: ["sh","mqnamesrv"]
  broker:
    image: apache/rocketmq:5.1.1
    container_name: rmqbroker
    ports:
      - 10909:10909
      - 10911:10911
    restart: always
    privileged: true
    volumes:
      - ./broker/logs:/root/logs
      - ./broker/store:/root/store
      - ./broker/conf/broker.conf:/home/rocketmq/rocketmq-5.1.1/conf/broker.conf
      - ./broker/bin/runbroker.sh:/home/rocketmq/rocketmq-5.1.1/bin/runbroker.sh
    depends_on:
      - 'rmqnamesrv'
    environment:
      - NAMESRV_ADDR=rmqnamesrv:9876
      - MAX_HEAP_SIZE=512M
      - HEAP_NEWSIZE=256M
    command: ["sh","mqbroker","-c","/home/rocketmq/rocketmq-5.1.1/conf/broker.conf"]
  rmqdashboard:
    image: apacherocketmq/rocketmq-dashboard:latest
    container_name: rocketmq-dashboard
    ports:
      - 18080:8080
    restart: always
    privileged: true
    depends_on:
      - 'rmqnamesrv'
    environment:
      - JAVA_OPTS= -Xmx256M -Xms256M -Xmn128M -Drocketmq.namesrv.addr=rmqnamesrv:9876 -Dcom.rocketmq.sendMessageWithVIPChannel=false

我们需要挂载启动脚本runserver.sh

#!/bin/bash

# Licensed to the Apache Software Foundation (ASF) under one or more
# contributor license agreements.  See the NOTICE file distributed with
# this work for additional information regarding copyright ownership.
# The ASF licenses this file to You under the Apache License, Version 2.0
# (the "License"); you may not use this file except in compliance with
# the License.  You may obtain a copy of the License at
#
#     http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.

#===========================================================================================
# Java Environment Setting
#===========================================================================================
error_exit ()
{
    echo "ERROR: $1 !!"
    exit 1
}

find_java_home()
{
    case "`uname`" in
        Darwin)
            JAVA_HOME=$(/usr/libexec/java_home)
        ;;
        *)
            JAVA_HOME=$(dirname $(dirname $(readlink -f $(which javac))))
        ;;
    esac
}

find_java_home

[ ! -e "$JAVA_HOME/bin/java" ] && JAVA_HOME=$HOME/jdk/java
[ ! -e "$JAVA_HOME/bin/java" ] && JAVA_HOME=/usr/java
[ ! -e "$JAVA_HOME/bin/java" ] && error_exit "Please set the JAVA_HOME variable in your environment, We need java(x64)!"

export JAVA_HOME
export JAVA="$JAVA_HOME/bin/java"
export BASE_DIR=$(dirname $0)/..
export CLASSPATH=.:${BASE_DIR}/conf:${CLASSPATH}

#===========================================================================================
# JVM Configuration
#===========================================================================================
calculate_heap_sizes()
{
    case "`uname`" in
        Linux)
            system_memory_in_mb=`free -m| sed -n '2p' | awk '{print $2}'`
            system_cpu_cores=`egrep -c 'processor([[:space:]]+):.*' /proc/cpuinfo`
        ;;
        FreeBSD)
            system_memory_in_bytes=`sysctl hw.physmem | awk '{print $2}'`
            system_memory_in_mb=`expr $system_memory_in_bytes / 1024 / 1024`
            system_cpu_cores=`sysctl hw.ncpu | awk '{print $2}'`
        ;;
        SunOS)
            system_memory_in_mb=`prtconf | awk '/Memory size:/ {print $3}'`
            system_cpu_cores=`psrinfo | wc -l`
        ;;
        Darwin)
            system_memory_in_bytes=`sysctl hw.memsize | awk '{print $2}'`
            system_memory_in_mb=`expr $system_memory_in_bytes / 1024 / 1024`
            system_cpu_cores=`sysctl hw.ncpu | awk '{print $2}'`
        ;;
        *)
            # assume reasonable defaults for e.g. a modern desktop or
            # cheap server
            system_memory_in_mb="2048"
            system_cpu_cores="2"
        ;;
    esac

    # some systems like the raspberry pi don't report cores, use at least 1
    if [ "$system_cpu_cores" -lt "1" ]
    then
        system_cpu_cores="1"
    fi

    # set max heap size based on the following
    # max(min(1/2 ram, 1024MB), min(1/4 ram, 8GB))
    # calculate 1/2 ram and cap to 1024MB
    # calculate 1/4 ram and cap to 8192MB
    # pick the max
    half_system_memory_in_mb=`expr $system_memory_in_mb / 2`
    quarter_system_memory_in_mb=`expr $half_system_memory_in_mb / 2`
    if [ "$half_system_memory_in_mb" -gt "1024" ]
    then
        half_system_memory_in_mb="1024"
    fi
    if [ "$quarter_system_memory_in_mb" -gt "8192" ]
    then
        quarter_system_memory_in_mb="8192"
    fi
    if [ "$half_system_memory_in_mb" -gt "$quarter_system_memory_in_mb" ]
    then
        max_heap_size_in_mb="$half_system_memory_in_mb"
    else
        max_heap_size_in_mb="$quarter_system_memory_in_mb"
    fi
    MAX_HEAP_SIZE="${max_heap_size_in_mb}M"

    # Young gen: min(max_sensible_per_modern_cpu_core * num_cores, 1/4 * heap size)
    max_sensible_yg_per_core_in_mb="100"
    max_sensible_yg_in_mb=`expr $max_sensible_yg_per_core_in_mb "*" $system_cpu_cores`

    desired_yg_in_mb=`expr $max_heap_size_in_mb / 4`

    if [ "$desired_yg_in_mb" -gt "$max_sensible_yg_in_mb" ]
    then
        HEAP_NEWSIZE="${max_sensible_yg_in_mb}M"
    else
        HEAP_NEWSIZE="${desired_yg_in_mb}M"
    fi
}

# calculate_heap_sizes

# Dynamically calculate parameters, for reference.
Xms=$MAX_HEAP_SIZE
Xmx=$MAX_HEAP_SIZE
Xmn=$HEAP_NEWSIZE
# Set for `JAVA_OPT`.
JAVA_OPT="${JAVA_OPT} -server -Xms${Xms} -Xmx${Xmx} -Xmn${Xmn}"
JAVA_OPT="${JAVA_OPT} -XX:+UseConcMarkSweepGC -XX:+UseCMSCompactAtFullCollection -XX:CMSInitiatingOccupancyFraction=70 -XX:+CMSParallelRemarkEnabled -XX:SoftRefLRUPolicyMSPerMB=0 -XX:+CMSClassUnloadingEnabled -XX:SurvivorRatio=8  -XX:-UseParNewGC"
JAVA_OPT="${JAVA_OPT} -verbose:gc -Xloggc:/dev/shm/rmq_srv_gc.log -XX:+PrintGCDetails"
JAVA_OPT="${JAVA_OPT} -XX:-OmitStackTraceInFastThrow"
JAVA_OPT="${JAVA_OPT}  -XX:-UseLargePages"
JAVA_OPT="${JAVA_OPT} -Djava.ext.dirs=${JAVA_HOME}/jre/lib/ext:${BASE_DIR}/lib"
#JAVA_OPT="${JAVA_OPT} -Xdebug -Xrunjdwp:transport=dt_socket,address=9555,server=y,suspend=n"
JAVA_OPT="${JAVA_OPT} ${JAVA_OPT_EXT}"
JAVA_OPT="${JAVA_OPT} -cp ${CLASSPATH}"

$JAVA ${JAVA_OPT} $@

将 calculate_heap_sizes 注释掉，因为它会自动计算最大堆内存和新生代内存的函数，会导致在不同硬件环境下设置最大堆内存和新生代内存环境变量不被应用

创建runbroker.sh文件

#!/bin/bash

# Licensed to the Apache Software Foundation (ASF) under one or more
# contributor license agreements.  See the NOTICE file distributed with
# this work for additional information regarding copyright ownership.
# The ASF licenses this file to You under the Apache License, Version 2.0
# (the "License"); you may not use this file except in compliance with
# the License.  You may obtain a copy of the License at
#
#     http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.

#===========================================================================================
# Java Environment Setting
#===========================================================================================
error_exit ()
{
    echo "ERROR: $1 !!"
    exit 1
}

find_java_home()
{
    case "`uname`" in
        Darwin)
            JAVA_HOME=$(/usr/libexec/java_home)
        ;;
        *)
            JAVA_HOME=$(dirname $(dirname $(readlink -f $(which javac))))
        ;;
    esac
}

find_java_home

[ ! -e "$JAVA_HOME/bin/java" ] && JAVA_HOME=$HOME/jdk/java
[ ! -e "$JAVA_HOME/bin/java" ] && JAVA_HOME=/usr/java
[ ! -e "$JAVA_HOME/bin/java" ] && error_exit "Please set the JAVA_HOME variable in your environment, We need java(x64)!"

export JAVA_HOME
export JAVA="$JAVA_HOME/bin/java"
export BASE_DIR=$(dirname $0)/..
export CLASSPATH=.:${BASE_DIR}/conf:${CLASSPATH}

#===========================================================================================
# JVM Configuration
#===========================================================================================
calculate_heap_sizes()
{
    case "`uname`" in
        Linux)
            system_memory_in_mb=`free -m| sed -n '2p' | awk '{print $2}'`
            system_cpu_cores=`egrep -c 'processor([[:space:]]+):.*' /proc/cpuinfo`
        ;;
        FreeBSD)
            system_memory_in_bytes=`sysctl hw.physmem | awk '{print $2}'`
            system_memory_in_mb=`expr $system_memory_in_bytes / 1024 / 1024`
            system_cpu_cores=`sysctl hw.ncpu | awk '{print $2}'`
        ;;
        SunOS)
            system_memory_in_mb=`prtconf | awk '/Memory size:/ {print $3}'`
            system_cpu_cores=`psrinfo | wc -l`
        ;;
        Darwin)
            system_memory_in_bytes=`sysctl hw.memsize | awk '{print $2}'`
            system_memory_in_mb=`expr $system_memory_in_bytes / 1024 / 1024`
            system_cpu_cores=`sysctl hw.ncpu | awk '{print $2}'`
        ;;
        *)
            # assume reasonable defaults for e.g. a modern desktop or
            # cheap server
            system_memory_in_mb="2048"
            system_cpu_cores="2"
        ;;
    esac

    # some systems like the raspberry pi don't report cores, use at least 1
    if [ "$system_cpu_cores" -lt "1" ]
    then
        system_cpu_cores="1"
    fi

    # set max heap size based on the following
    # max(min(1/2 ram, 1024MB), min(1/4 ram, 8GB))
    # calculate 1/2 ram and cap to 1024MB
    # calculate 1/4 ram and cap to 8192MB
    # pick the max
    half_system_memory_in_mb=`expr $system_memory_in_mb / 2`
    quarter_system_memory_in_mb=`expr $half_system_memory_in_mb / 2`
    if [ "$half_system_memory_in_mb" -gt "1024" ]
    then
        half_system_memory_in_mb="1024"
    fi
    if [ "$quarter_system_memory_in_mb" -gt "8192" ]
    then
        quarter_system_memory_in_mb="8192"
    fi
    if [ "$half_system_memory_in_mb" -gt "$quarter_system_memory_in_mb" ]
    then
        max_heap_size_in_mb="$half_system_memory_in_mb"
    else
        max_heap_size_in_mb="$quarter_system_memory_in_mb"
    fi
    MAX_HEAP_SIZE="${max_heap_size_in_mb}M"

    # Young gen: min(max_sensible_per_modern_cpu_core * num_cores, 1/4 * heap size)
    max_sensible_yg_per_core_in_mb="100"
    max_sensible_yg_in_mb=`expr $max_sensible_yg_per_core_in_mb "*" $system_cpu_cores`

    desired_yg_in_mb=`expr $max_heap_size_in_mb / 4`

    if [ "$desired_yg_in_mb" -gt "$max_sensible_yg_in_mb" ]
    then
        HEAP_NEWSIZE="${max_sensible_yg_in_mb}M"
    else
        HEAP_NEWSIZE="${desired_yg_in_mb}M"
    fi
}

# calculate_heap_sizes

# Dynamically calculate parameters, for reference.
Xms=$MAX_HEAP_SIZE
Xmx=$MAX_HEAP_SIZE
Xmn=$HEAP_NEWSIZE
MaxDirectMemorySize=$MAX_HEAP_SIZE
# Set for `JAVA_OPT`.
JAVA_OPT="${JAVA_OPT} -server -Xms${Xms} -Xmx${Xmx} -Xmn${Xmn}"
JAVA_OPT="${JAVA_OPT} -XX:+UseG1GC -XX:G1HeapRegionSize=16m -XX:G1ReservePercent=25 -XX:InitiatingHeapOccupancyPercent=30 -XX:SoftRefLRUPolicyMSPerMB=0 -XX:SurvivorRatio=8"
JAVA_OPT="${JAVA_OPT} -verbose:gc -Xloggc:/dev/shm/mq_gc_%p.log -XX:+PrintGCDetails -XX:+PrintGCDateStamps -XX:+PrintGCApplicationStoppedTime -XX:+PrintAdaptiveSizePolicy"
JAVA_OPT="${JAVA_OPT} -XX:+UseGCLogFileRotation -XX:NumberOfGCLogFiles=5 -XX:GCLogFileSize=30m"
JAVA_OPT="${JAVA_OPT} -XX:-OmitStackTraceInFastThrow"
JAVA_OPT="${JAVA_OPT} -XX:+AlwaysPreTouch"
JAVA_OPT="${JAVA_OPT} -XX:MaxDirectMemorySize=${MaxDirectMemorySize}"
JAVA_OPT="${JAVA_OPT} -XX:-UseLargePages -XX:-UseBiasedLocking"
JAVA_OPT="${JAVA_OPT} -Djava.ext.dirs=${JAVA_HOME}/jre/lib/ext:${BASE_DIR}/lib"
#JAVA_OPT="${JAVA_OPT} -Xdebug -Xrunjdwp:transport=dt_socket,address=9555,server=y,suspend=n"
JAVA_OPT="${JAVA_OPT} ${JAVA_OPT_EXT}"
JAVA_OPT="${JAVA_OPT} -cp ${CLASSPATH}"

numactl --interleave=all pwd > /dev/null 2>&1
if [ $? -eq 0 ]
then
        if [ -z "$RMQ_NUMA_NODE" ] ; then
                numactl --interleave=all $JAVA ${JAVA_OPT} $@
        else
                numactl --cpunodebind=$RMQ_NUMA_NODE --membind=$RMQ_NUMA_NODE $JAVA ${JAVA_OPT} $@
        fi
else
        $JAVA ${JAVA_OPT} $@
fi

同样注释掉：calculate_heap_sizes

创建broker.conf文件

# 所属集群名字
brokerClusterName=DefaultCluster

# broker 名字，注意此处不同的配置文件填写的不一样，如果在 broker-a.properties 使用: broker-a,
# 在 broker-b.properties 使用: broker-b
brokerName=broker-a

# 0 表示 Master，> 0 表示 Slave
brokerId=0

# nameServer地址，分号分割
# namesrvAddr=rocketmq-nameserver1:9876;rocketmq-nameserver2:9876

# 启动IP,如果 docker 报 com.alibaba.rocketmq.remoting.exception.RemotingConnectException: connect to <192.168.0.120:10909> failed
# 解决方式1 加上一句 producer.setVipChannelEnabled(false);，解决方式2 brokerIP1 设置宿主机IP，不要使用docker 内部IP
brokerIP1=宿主机IP

# Broker 对外服务的监听端口
listenPort=10911

# 删除文件时间点，默认凌晨4点
deleteWhen=04

# 文件保留时间，默认72小时
fileReservedTime=120

# 是否自动创建消费组
autoCreateSubscriptionGroup=true

# 是否自动创建主题
autoCreateTopicEnable=true

# 限制的消息大小
maxMessageSize=65536

# flushCommitLogLeastPages=4
# flushConsumeQueueLeastPages=2
# flushCommitLogThoroughInterval=10000
# flushConsumeQueueThoroughInterval=60000

# Broker 的角色
# - ASYNC_MASTER 异步复制Master
# - SYNC_MASTER 同步双写Master
# - SLAVE
brokerRole=ASYNC_MASTER

# 刷盘方式
# - ASYNC_FLUSH 异步刷盘
# - SYNC_FLUSH 同步刷盘
flushDiskType=ASYNC_FLUSH

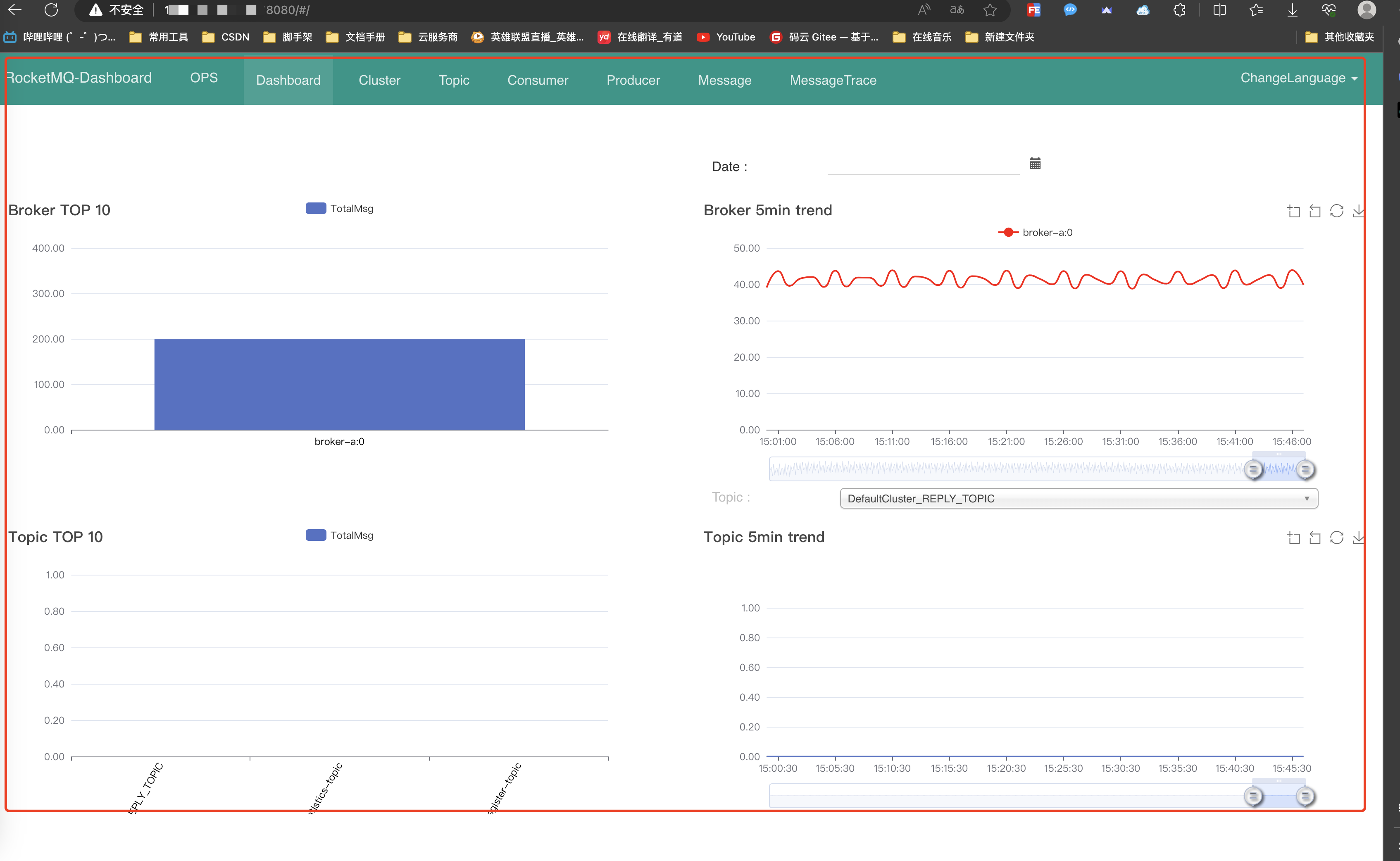

访问控制台

/images/docker-compose/docker-rocketmq-1.png
